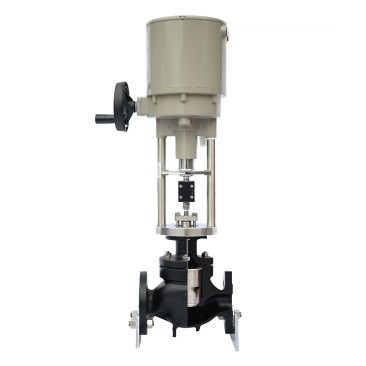

The sleeve double-seat regulating valve adopts sleeve-guided and pressure-balanced split valve core. Compared with the sleeve single-seat regulating valve, this series of regulating valves are sleeve double-seat structure, which is mainly used in occasions with low leakage requirements. Because the two sealing surfaces of the double-seat structure are metal seals, the temperature range is wider.

Valve Material

• Body Material WCB, CF8, CF8M, CF3M, etc
• Gasket Material metal graphite gasket/PTFE
• Trim Material 304, 316, 316L, etc
• Spool And Seat Material 304, 316, 316L,  etc
• Bonnet Material WCB, CF8, CF8M, CF3M, etc
• Stem Material 304, 316, 316L,  etc

Design Feature

• Trim Features top guided unbalanced Internals, quick release cage structure
• Body Type straight-through, angled
• Spool Form single seat type, sleeve type, cage type
• Bonnet Form standard, heat sink, low temperature, bellows
• Gland Type bolt pressing type
• Flow Characteristics equal percentage, linear, quick opening
