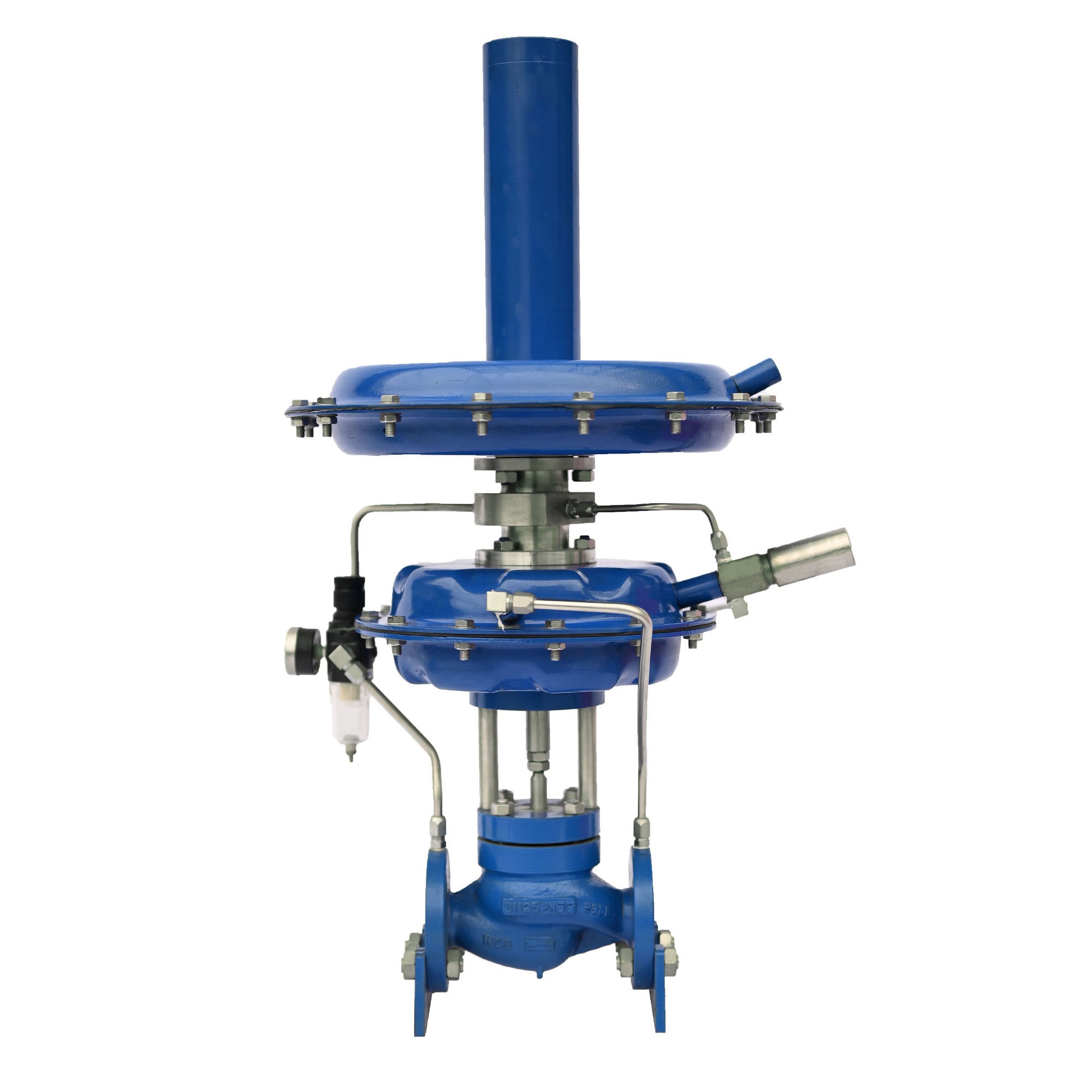

Nitrogen seal control valve has two kinds of Nitrogen supply regulation and nitrogen release regulation, which can depend on the pressure change of the regulated medium itself to achieve the purpose of automatic regulation and stable pressure. It is mainly used to keep the container at the top of the shielding gas (usually nitrogen) pressure constant, so as to avoid direct contact with the air container material, prevent evaporation materials, oxidation, and the safety of the vessel.

Valve Material

• Body Material WCB, CF8, CF8M, CF3M, etc
• Gasket Material metal graphite gasket/PTFE
• Trim Material 304, 316, 316L, etc
• Spool And Seat Material 304, 316, 316L,  etc
• Bonnet Material WCB, CF8, CF8M, CF3M, etc
• Stem Material 304, 316, 316L,  etc

Design Feature

• Trim Features top guided unbalanced Internals, quick release cage structure
• Body Type straight-through, angled
• Spool Form single seat type, sleeve type, cage type
• Bonnet Form standard, heat sink, low temperature, bellows
• Gland Type bolt pressing type
• Flow Characteristics equal percentage, linear, quick opening
