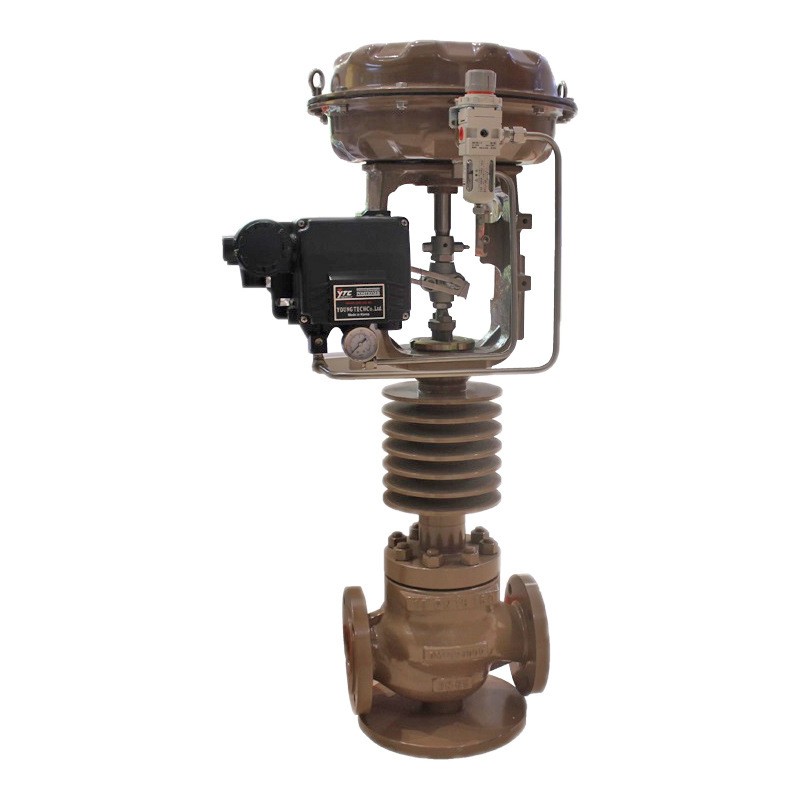

Pneumatic Three Way Diaphragm Flow Shunt Single Double Seat Regulating Valve

Pneumatic three-way diaphragm flow shunt single and double seat control valve is divided into single seat and double seat two structural forms. The single-seat structure is suitable for the fluid control accuracy requirements are not high, and the two-seat structure is suitable for the fluid control accuracy requirements. It can achieve a variety of flow control, such as proportional control, position control, PID control, etc.

Design Standard：ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc

Wall Thickness Standard：ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc

Pressure Range：PN0.6MPa, 1.0MPa, 1.6MPa, ANSI 150lb

Size Range：DN6 (1/4”)~DN25 (1”)

Product Detail

Valve Material

Body Material WCB, CF8, CF8M, CF3M, etc
Gasket Material metal graphite gasket/PTFE
Trim Material 304, 316, 316L, etc
Spool And Seat Material 304, 316, 316L, etc
Bonnet Material WCB, CF8, CF8M, CF3M, etc
Stem Material 304, 316, 316L, etc

Design Feature

Trim Features top guided unbalanced Internals, quick release cage structure
Body Type straight-through, angled
Spool Form single seat type, double seat type
Bonnet Form standard, heat sink, low temperature, bellows
Gland Type bolt pressing type
Flow Characteristics equal percentage, linear, quick opening

Inspection And Test

Leakage Rating ANSI/FCI 70-2, API 598, BS 6364, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
Inspection And Testing Standard ANSI/FCI 70-2, API 598, BS EN 12266, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
