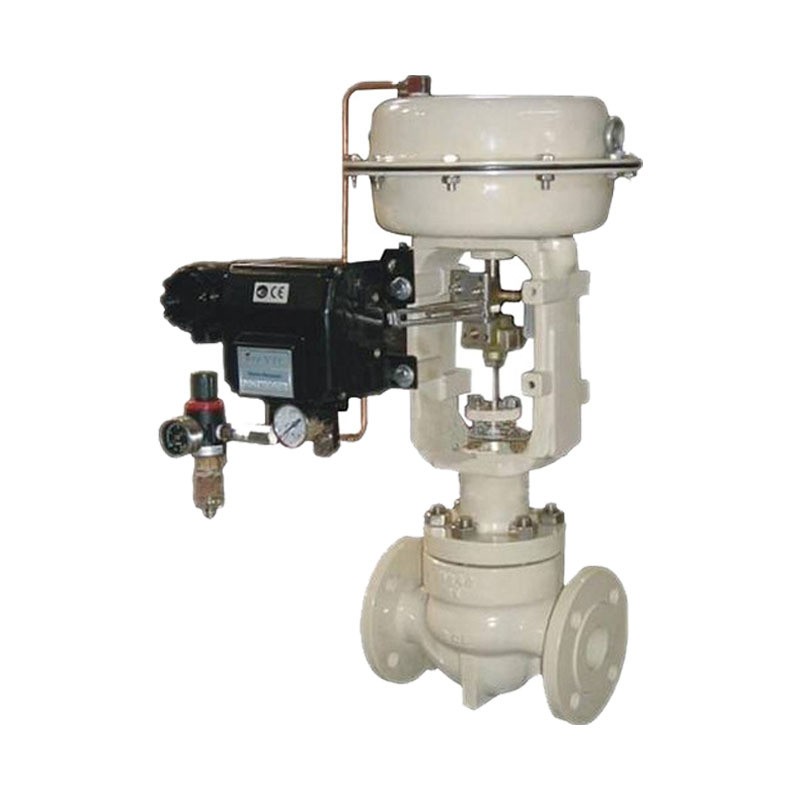

Pneumatic Small Diaphragm Sleeve Flow Regulating Valve

Pneumatic small diaphragm sleeve flow control valve has the characteristics of compact structure, light weight, flexible opening and closing, easy maintenance and so on. The valve is designed and manufactured to meet international standards and can also be customized according to user requirements. In addition, the pneumatic small film sleeve flow control valve can also be controlled with computer, PLC and other automatic control system, to achieve automatic control.

Design Standard：ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc

Wall Thickness Standard：ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc

Pressure Range：PN0.6MPa, 1.0MPa, 1.6MPa, ANSI 150lb

Size Range：DN6 (1/4”)~DN50 (2”)

Product Detail

Valve Material

Body Material WCB, CF8, CF8M, CF3M, etc
Gasket Material metal graphite gasket/PTFE
Trim Material 304, 316, 316L, etc
Spool And Seat Material 304, 316, 316L, etc
Bonnet Material WCB, CF8, CF8M, CF3M, etc
Stem Material 304, 316, 316L, etc

Design Feature

Trim Features top guided unbalanced Internals, quick release cage structure
Body Type straight-through, angled
Bonnet Form standard, heat sink, low temperature, bellows
Gland Type bolt pressing type
Flow Characteristics equal percentage, linear, quick opening

Inspection And Test

Leakage Rating ANSI/FCI 70-2, API 598, BS 6364, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
Inspection And Testing Standard ANSI/FCI 70-2, API 598, BS EN 12266, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
