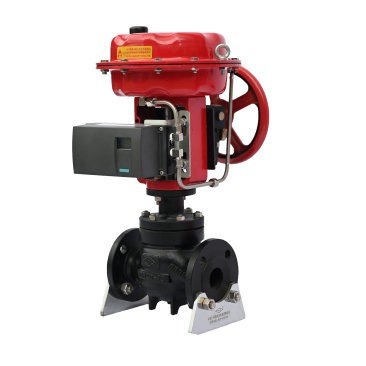

Pneumatic diaphragm side mounted handwheel type regulating valve is a common industrial control valve, with handwheel operating device, can manually control the valve opening, convenient adjustment and maintenance. Its pneumatic actuator adopts pneumatic thin film actuator to control the position of the valve core by adjusting the pressure of the air source.

Valve Material

• Body Material CF8, CF8M, CF3M, etc
• Trim Material 304, 316, 316L, etc
• Spool And Seat Material 304, 316, 316L, etc
• Cage Material CF8, CF8M, etc
• Stem Material CF8, CF8M, CF3M, etc

Design Feature

• Trim Features top guided unbalanced Internals, quick release cage structure
• Body Type straight-through casting S type
• Spool Form single seat type, sleeve type, cage type
• Bonnet Form standard, heat sink, low temperature, bellows
• Gland Type bolt pressing type
• Flow Characteristics equal percentage, linear, quick opening
• Gland Packing V-type PTFE packing, impregnated PTFE asbestos packing, asbestos textile packing, graphite packing
