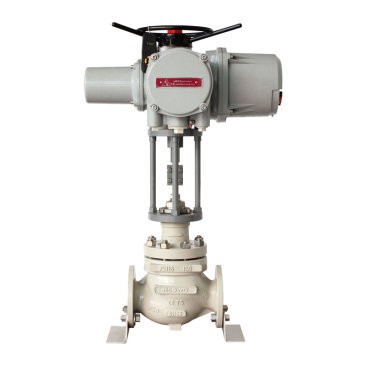

Electronic Sleeve Steam Flow Regulating Valve

The main components of electronic sleeve steam flow control valve include valve body, sleeve, electric actuator and electronic flowmeter. The steam enters the sleeve through the valve body, is measured by the flowmeter in the sleeve, and then the opening and closing degree of the sleeve is adjusted by the electric actuator, so as to realize the adjustment of the steam flow. The regulating valve can also be connected with the control system to realize remote control and monitoring.

Design Standard:ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc


Wall Thickness Standard:ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc


Pressure Range:PN16~PN64, ANSI 150lb~ANSI 300lb, JIS 10K


Size Range:DN15 (1/2”)~DN500 (20”)


  • Product Detail

Valve Material


  • Body Material CF8, CF8M, CF3M, etc
  • Trim Material 304, 316, 316L, etc
  • Spool And Seat Material 304, 316, 316L, etc
  • Cage Material CF8, CF8M, etc
  • Stem Material CF8, CF8M, CF3M, etc


Design Feature


  • Trim Features top guided unbalanced Internals, quick release cage structure
  • Body Type straight-through casting S type
  • Bonnet Form standard, heat sink, low temperature, bellows
  • Gland Type bolt pressing type
  • Flow Characteristics equal percentage, linear, quick opening
  • Gland Packing V-type PTFE packing, impregnated PTFE asbestos packing, asbestos textile packing, graphite packing


Inspection And Test


  • Leakage Rating ANSI/FCI 70-2, API 598, BS 6364, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
  • Inspection And Testing Standard ANSI/FCI 70-2, API 598, BS EN 12266, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
