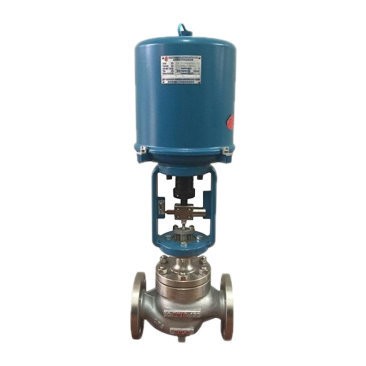

Electric Single Seat Electronic Steam Flow Control Valve

Electric single seat electronic steam flow control valve is a kind of flow control valve for steam system, it uses electric actuator to control the opening and closing of the spool, through the electronic flowmeter to measure the flow, to achieve accurate regulation of steam flow. The regulating valve has the characteristics of high precision, fast response speed and good stability, which is suitable for the occasions where the steam flow is strictly controlled.

Design Standard：ANSI B16.34, API 6D, ISO 5208, DIN 3356, JIS B2071, BS 1873, GB/T 12237, GB/T 12238, EN 593, etc

Wall Thickness Standard：ANSI B16.34, BS 1873, DIN 3356, JIS B2071, EN 593, GB/T 12224, JB/T 3595, etc

Pressure Range：PN16~PN64, ANSI 150lb~ANSI 300lb, JIS 10K

Size Range：DN15 (1/2”)~DN500 (20”)

Product Detail

Valve Material

Body Material WCB, CF8, CF8M, CF3M, etc
Gasket Material metal graphite gasket/PTFE
Trim Material 304, 316, 316L, etc
Spool And Seat Material 304, 316, 316L, etc
Bonnet Material WCB, CF8, CF8M, CF3M, etc
Stem Material 304, 316, 316L, etc

Design Feature

Trim Features top guided unbalanced Internals, quick release cage structure
Body Type straight-through, angled
Bonnet Form standard, heat sink, low temperature, bellows
Gland Type bolt pressing type
Flow Characteristics equal percentage, linear, quick opening

Inspection And Test

Leakage Rating ANSI/FCI 70-2, API 598, BS 6364, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
Inspection And Testing Standard ANSI/FCI 70-2, API 598, BS EN 12266, DIN EN 12266, JIS B2003, EN 12266-1, GB/T 13927, JB/T 9092, etc
