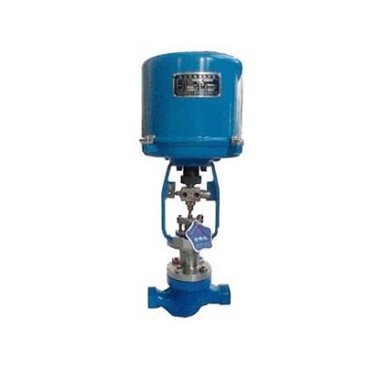

Parameters of main components of electric micro flow regulating valve

Body part

Valve body form: straight forged valve body

Valve body material: 20 # F22 304 316

● Nominal diameter: DN1.5 ～ DN20

● Nominal pressure: PN1.6 4.0 10.0 16.0 20.0 32.0MPa

ANSI 150 300 600 900 1500LB

Connection type: flange: FF RF RTJ, etc

Thread: NPT

Welding: SW BW

● Structure length: in accordance with IEC534

● Bonnet form: integrated

● Filler: PTFE flexible graphite, etc

● Sealing gasket: metal clip graphite sealing gasket, tetrafluoroethylene gasket, etc

Valve internals

● Valve core type: single seat plunger type

● Flow characteristics: equal percentage, linear

Actuator

● 3810 series, PSL series, CV3000 series
