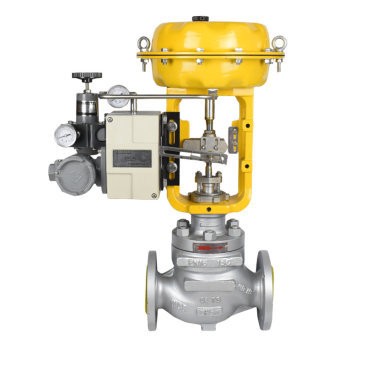

Stainless steel pneumatic diaphragm regulating valve body and valve cover are made of stainless steel materials with high corrosion resistance and better sealing performance. The pneumatic actuator uses compressed air or gas as a power source, by regulating the air source pressure to control the position of the valve core, so as to achieve accurate control of media flow, pressure and temperature parameters. As the core component of the control valve, the film has good sealing performance and fast response characteristics, and can achieve high precision control.

Valve Material

• Body Material WCB, CF8, CF8M, CF3M, etc
• Gasket Material metal graphite gasket/PTFE
• Trim Material 304, 316, 316L, etc
• Spool And Seat Material 304, 316, 316L,  etc
• Bonnet Material WCB, CF8, CF8M, CF3M, etc
• Stem Material 304, 316, 316L,  etc

Design Feature

• Trim Features top guided unbalanced Internals, quick release cage structure
• Body Type straight-through, angled
• Spool Form single seat type, sleeve type, cage type
• Bonnet Form standard, heat sink, low temperature, bellows
• Gland Type bolt pressing type
• Flow Characteristics equal percentage, linear, quick opening
