Forged Steel Check Valve

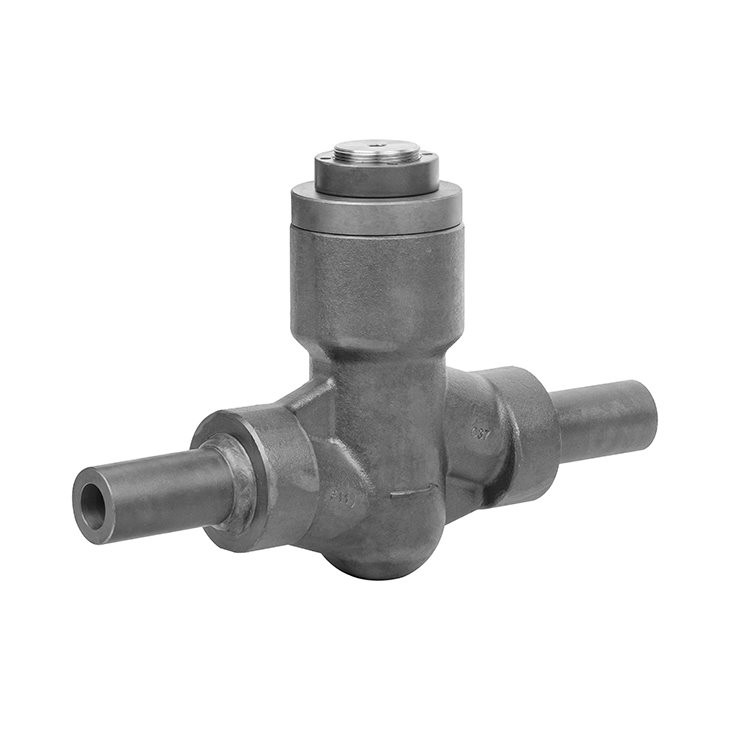

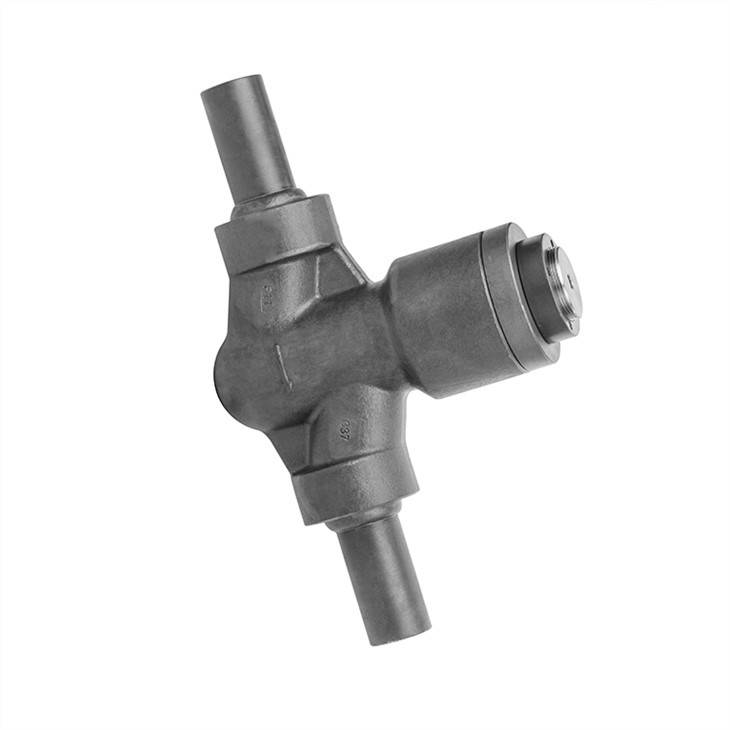

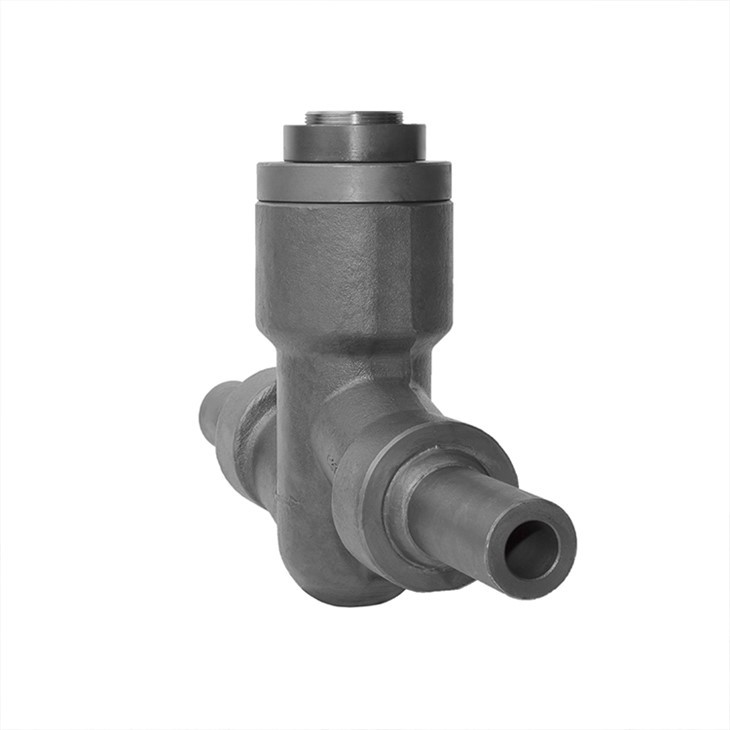

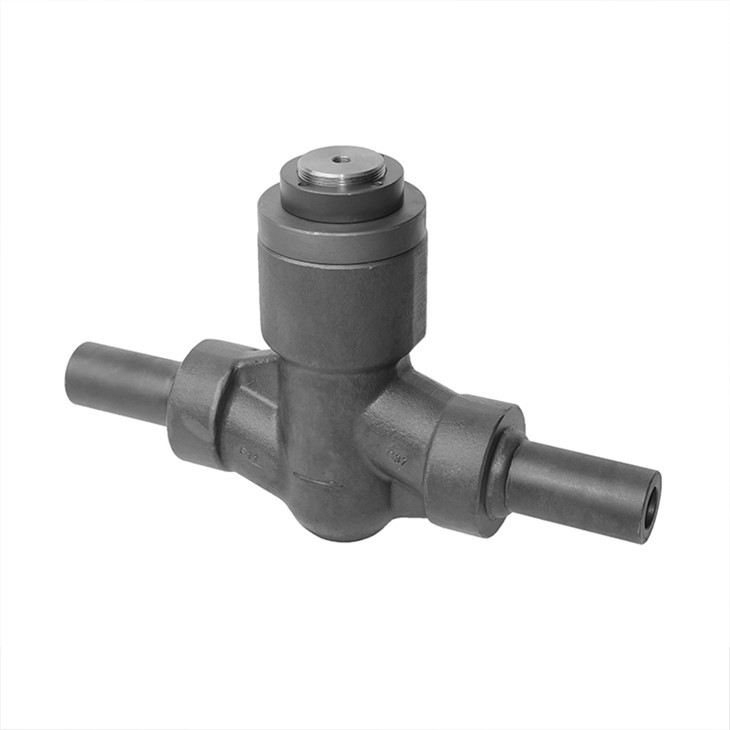

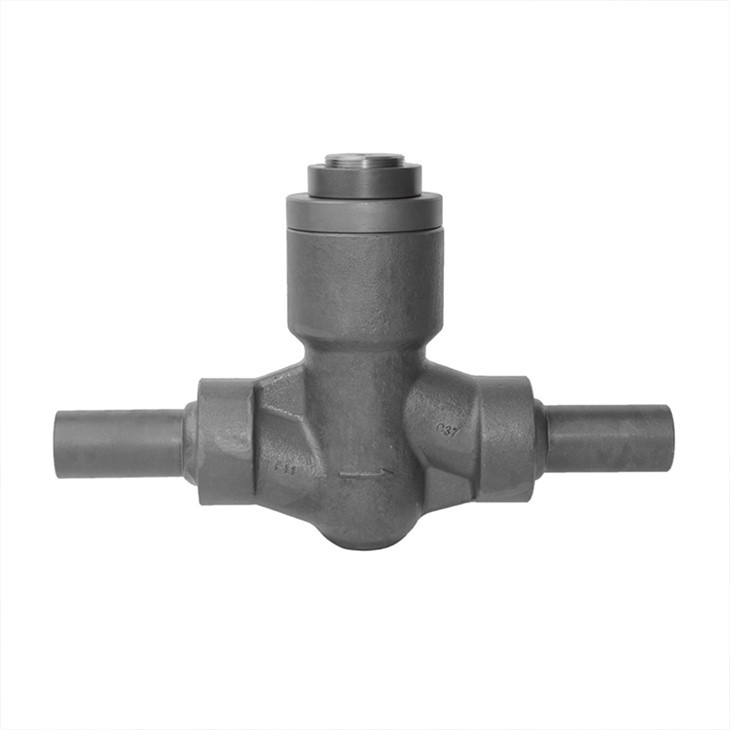

Forged Self-sealing Lift Check Valve With Nipple Both End

Check Valve Size: NPS 1/2" - 2"

Pressure Rating: ANSI Class 150 - 2500
Valve Materials: A105, LF2, LF3, F5, F11, F22, F304, F316, F304L, F316L, F321, F347, F317, F317L, F310H, F9, F91, F53, Monel 400, Inconel 625, C95500, C95800, ALLOY 20
Design and Manufacture: API 602
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Electric Actuator, Pneumatic Actuator
  • Product Detail

Vital Valve is a proud check valve manufacturer and supplier that provides industrial check valves in various configurations and materials, including bronze, steel, and iron valves. Check valves are used to ensure that gases and liquids are flowing in one direction only. They essentially prevent the process flow from reverting, which forces the valve to close. Check valves are needed to stop backflow and protect rotating equipment and mechanical devices from the sudden backflow surges that may occur. Our check valves are industry approved for a wide range of applications, from oil & gas to pulp & paper.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, RTJ, Threaded or Socket Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
