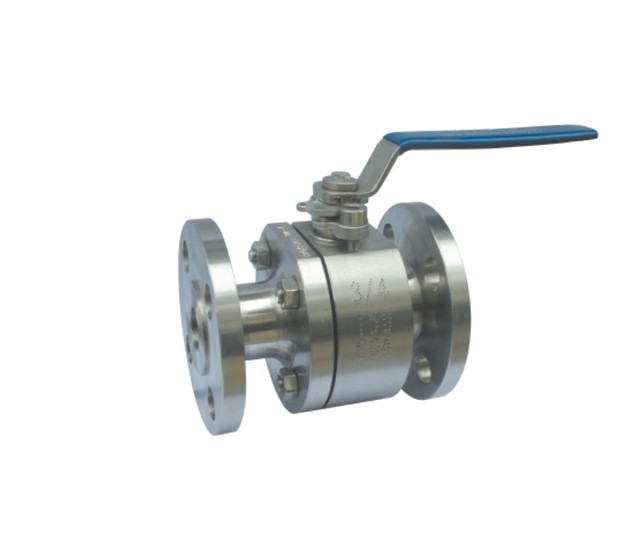

Small Size Forged Steel Ball Valve

Forged Flange Ball valves

Ball Valve Size: NPS 1/2" - 2"


Pressure Rating: ANSI Class 150 - 2500
Valve Materials: A105, LF2, LF3, F5, F11, F22, F304, F316, F304L, F316L, F321, F347, F317, F317L, F310H, F9, F91, F53, Monel 400, Inconel 625, C95500, C95800, ALLOY 20
Design and Manufacture: BS 5351
Face-to-Face: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: API 598
Operation Method: Manual, Electric Actuator, Pneumatic Actuator

  • Product Detail

As a leading ball valve manufacturer Vital Valve has been producing industrial ball valves to the highest quality standards with ultra-modern manufacturing technology and astute materials sourcing.


DESIGN FEATURES:

· Bolted or Welded Bonnet

· Flanged, Threaded or Socket Weld Ends

· Forged Carbon, Stainless or Alloy Steel Materials

· Available in all trim configurations

· Full Port option available for classes 150 - 2500


APPLICATIONS:

· Petrochemicals

· Refining

· Nuclear

· Pulp & Paper

· LNG & Cryogenics

· Fossil & Cogeneration Power
