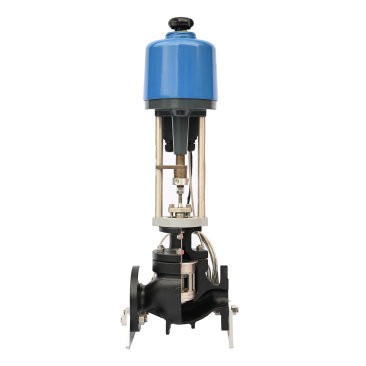

Cage single seat regulating valve uses the top guide unbalanced structure, high strength, heavy load, S-shaped runner, small pressure drop loss, large flow coefficient, wide adjustable range and high accuracy of flow characteristics. This type of regulating valve is suitable for the occasion of small pressure difference in working condition, close tightly, suitable for the adjustment of medium flow or pressure.

Valve Material

• Body Material WCB, CF8, CF8M, CF3M, etc
• Gasket Material metal graphite gasket/PTFE
• Trim Material 304, 316, 316L, etc
• Spool And Seat Material 304, 316, 316L,  etc
• Bonnet Material WCB, CF8, CF8M, CF3M, etc
• Stem Material 304, 316, 316L,  etc

Design Feature

• Trim Features top guided unbalanced Internals, quick release cage structure
• Body Type straight-through, angled
• Spool Form single seat type, sleeve type, cage type
• Bonnet Form standard, heat sink, low temperature, bellows
• Gland Type bolt pressing type
• Flow Characteristics equal percentage, linear, quick opening
